Hub & Spoke vs. Azure Virtual WAN: Designing the Modern Enterprise Hub.

For years, the traditional Hub-and-Spoke network topology has been the undisputed foundation of Azure enterprise architecture. It provides a centralized point for workloads and branches to connect through, typically funneling traffic through a firewall.

However, as organizations scale multi-region footprints and integrate massive SD-WAN branch networks, the manual overhead of managing this topology begins to buckle.

Enter Azure Virtual WAN (vWAN). Is it a replacement for Hub-and-Spoke, or a completely different paradigm?

The Breaking Point of Traditional Hub & Spoke

In a traditional hub-and-spoke architecture, you build and operate the central VNet yourself. Because Azure virtual network peering is non-transitive by default, a spoke cannot natively reach another spoke.

To force traffic through a central Azure Firewall or Network Virtual Appliance (NVA), cloud engineers must rely on User-Defined Routes (UDRs).

The Scale Problem: Every new spoke requires new UDRs on every subnet to ensure traffic routes correctly.
The Multi-Region Problem: If you expand to a second or third Azure region, you must manually peer the hubs and synchronize route tables across regions, creating a brittle web of static configurations.

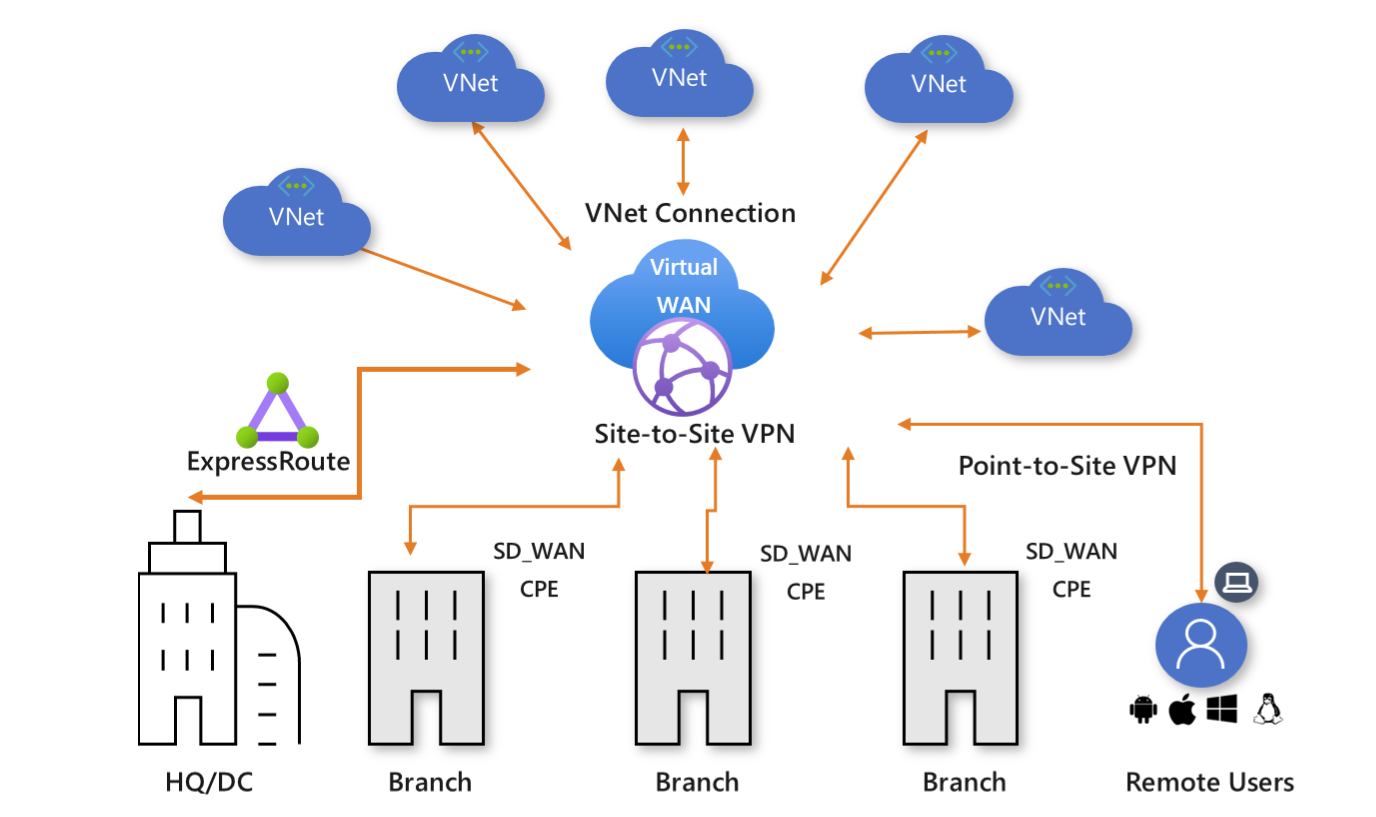

The Azure Virtual WAN Paradigm

Azure Virtual WAN is still a hub-and-spoke architecture, but with a critical distinction: Microsoft manages the hub infrastructure, scaling, and routing.

Instead of deploying a custom VNet, you deploy a Virtual WAN resource containing virtual hubs across your active regions.

Transitive Routing Natively: Virtual WAN provides transitive routing by default, meaning Spoke A can reach Spoke B through the virtual hub without any UDR configuration.
Global Mesh: If you deploy hubs in multiple regions, they automatically establish hub-to-hub connectivity over the Microsoft backbone. Cross-region traffic flows without manual gateway or peering configurations.

The Game Changer: Routing Intent & Secured Virtual Hubs

The most powerful feature of modern vWAN is Routing Intent. If you deploy Azure Firewall inside the vWAN hub (creating a “Secured Virtual Hub”), Routing Intent eliminates manual route management entirely.

Routing intent abstracts routing decisions into two declarative categories: private and internet.

Internet Traffic Policy: Automatically forwards all internet-bound traffic from connected VNets and branches to the hub’s security solution.
Private Traffic Policy: Automatically forwards all inter-VNet, branch-to-VNet, and inter-hub traffic to the hub’s security solution for inspection.

Once configured, the vWAN control plane pushes these effective routes down to every connected spoke automatically—making UDR sprawl a thing of the past.

Architectural Comparison.

Feature	Traditional Hub & Spoke	Azure Virtual WAN
Hub Infrastructure	Customer-managed VNet	Microsoft-managed Virtual Hub
Transitive Routing	No (Requires NVA/Firewall & UDRs)	Yes (Native)
Multi-Region Mesh	Manual hub-to-hub peering	Automatic global backbone mesh
Route Management	Manual UDRs per spoke/subnet	Automated via Routing Intent policies
Pricing Model	Standard compute & bandwidth	Unit-based (Deployment, Scale, & Routing units)
Troubleshooting Depth	Deep (Full packet-level access)	Abstracted (Relies on managed dashboards)

When to Migrate: The Decision Matrix

Virtual WAN is a scale alternative to hub-spoke, not a replacement. The decision to migrate comes down to your three-year growth trajectory.

Stay with Traditional Hub & Spoke if:

You operate in only one or two Azure regions.
You have fewer than 30 spoke VNets.
You require a highly custom third-party NVA that is not supported inside a vWAN hub.

Migrate to Azure Virtual WAN if:

You are crossing the 3-Region threshold: The operational cost of manually synchronizing routes across three or more active regions rapidly exceeds the platform premium of vWAN.
You have massive branch connectivity: vWAN was designed to ingest dozens or hundreds of branch offices via Site-to-Site VPN or SD-WAN partners (e.g., Cisco, VMware).
Your network team is drowning in UDRs: If managing static routes is slowing down application deployments, vWAN’s Routing Intent provides the automation needed for DevOps agility.
